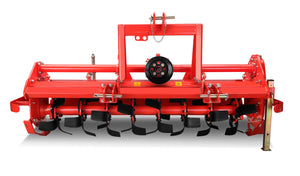

Heavy Duty Rotary Tiller
Heavy Duty Rotary Tiller
Heavy Duty Rotary Tiller

Heavy Duty Rotary Tiller

It is one ideal implement for soil preparation in area of vineyard, nursery, orchard and garden. Whether you are laying turf around a golf course or growing small crops, the rotary hoe is perfect for preparing top soil for planting, also creates a smooth finish as crop and lawn preparation and improving productivity.

Specifications:

  • Heavy-duty adjustable drag board with zinc plated springs
  • Height adjustable skids for depth control
  • Reliable gearbox and side gears
  • Shear pin PTO shaft
  • Powder-coated finish
  • Type of drive: gear
  • Rotor shaft speed: 243 rpm at 540 rpm
  • Rotor swing diameter: 19”
  • Tilling depth: 4-6”
  • Skid shoes: adjustable
  • Rear deflector: adjustable
  • MODEL LGM140 LGM160 LGM180
    Dimensions(mm) 1628*925*1020 1844*925*1020 2060*925*1020
    Structure Weight(lbs.) 790 825
    		 870
    Tilling width 54" 62" 70"
    Tilling height 4-6"
    		 4-6"
    		 4-6"
    PTO Turing speed(rpm) 540 540 540
    PTO shaft size(mm) shear bolt
    Power Required(hp) 30-40 35-45 40-50
    Packing Size 62" x 32" x 30" 70" x 32" x 30" 79" x 32" x 30"
